Manufacturing & Production Process
PA6 (Nylon 6) is a premier choice for industrial electronic components due to its unique material properties:
- Mechanical Robustness: It provides excellent tensile strength and high impact resistance, essential for protecting sensitive internal electronics from mechanical stress.
- Thermal Stability: PA6 maintains its structural form at elevated temperatures, making it suitable for electrical components that generate heat during operation.
- Chemical & Wear Resistance: The material is highly resistant to oils, greases, and common industrial chemicals, ensuring long-term durability in harsh environments.
- Electrical Insulation: It acts as a reliable dielectric, providing the safety and performance standards required for electrical housing.
Injection Mold Process
Our production of PA6 components leverages high-precision injection molding, optimized specifically for the unique rheological properties of Polyamide:
Moisture Management:
PA6 is naturally hygroscopic. Prior to molding, we utilize advanced desiccant drying systems to reach extremely low moisture content. This is critical to prevent surface defects and ensure the final part achieves its maximum mechanical potential.
01
High-Temperature Plasticization:
Due to the relatively high melting point of PA6, our single-color machines employ precise barrel temperature profiling to ensure the resin reaches the optimal flow state without thermal degradation.
02
Optimized Mold Flow:
Given the high fluidity of molten PA6, our mold designs include precision-engineered venting and balanced runner systems. This prevents "flash" at the parting lines and ensures that complex geometric features-such as the integrated brass insert housings-are filled completely and cleanly.
03
Controlled Cooling Cycles:
We utilize high-efficiency cooling channels to manage the semi-crystalline nature of PA6, promoting uniform crystallization. This minimizes internal stresses and prevents the warpage often associated with crystalline polymers.
04
Engineering & DFM
Our DFM approach for this PA6 component focuses on maximizing the material's structural advantages:

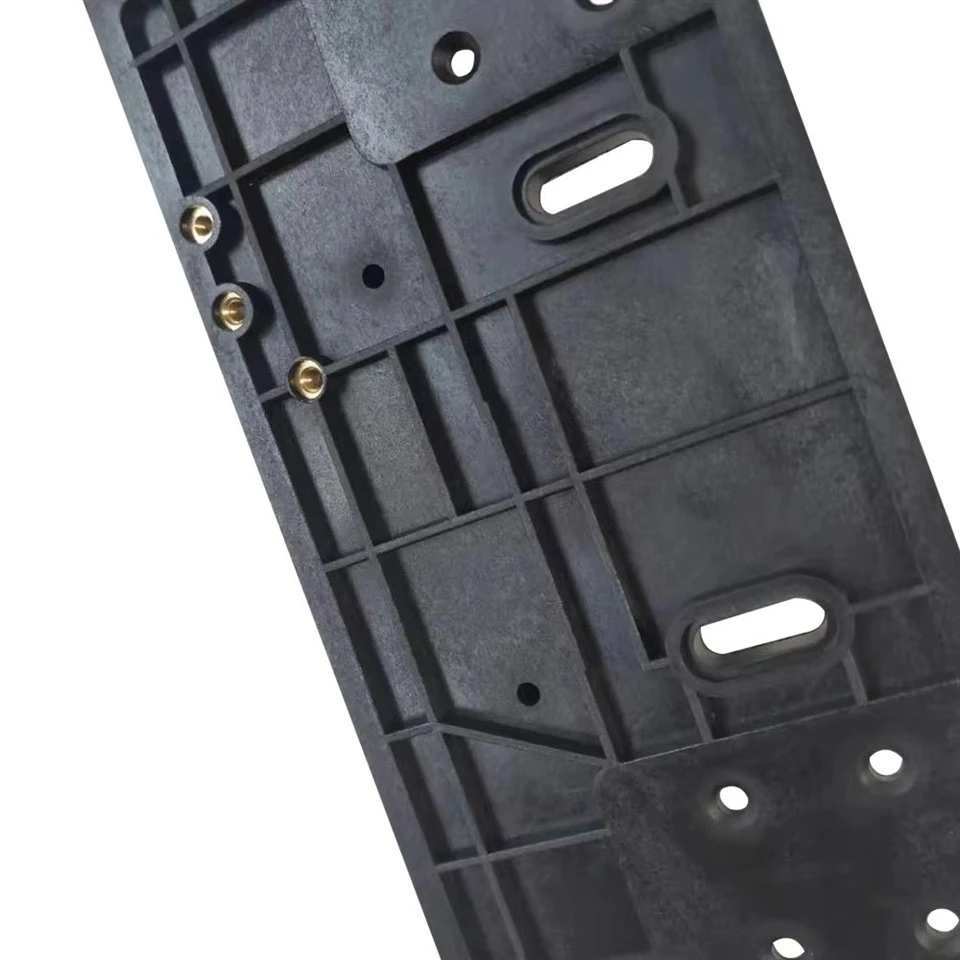

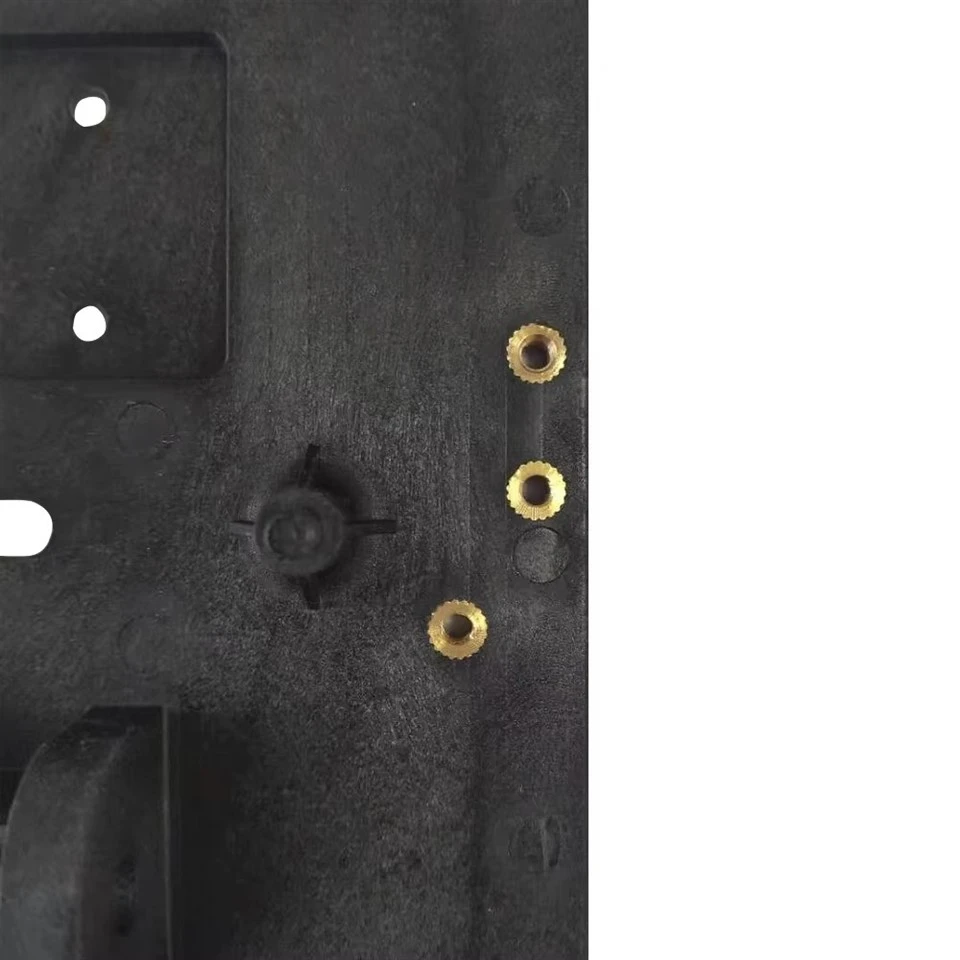

- Integrated Metal Inserts: The design incorporates precision-molded pockets for brass threaded inserts, allowing for high-torque mechanical assembly without damaging the plastic base.

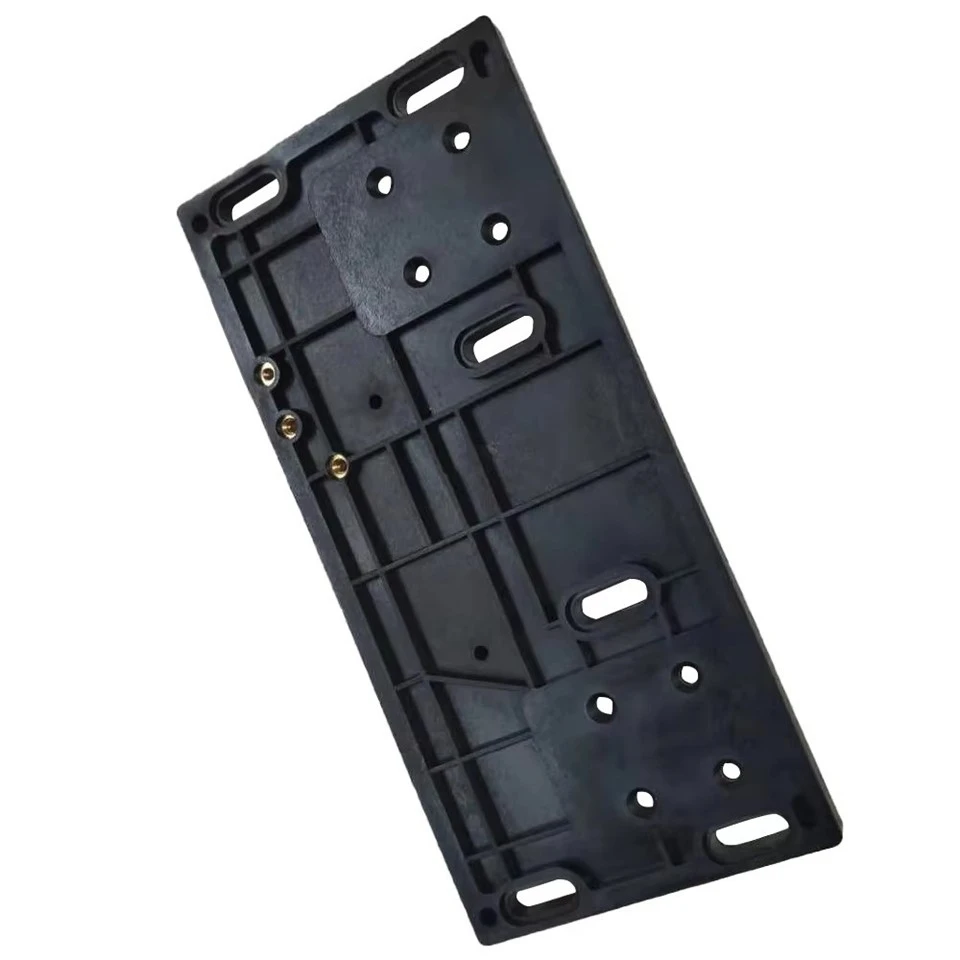

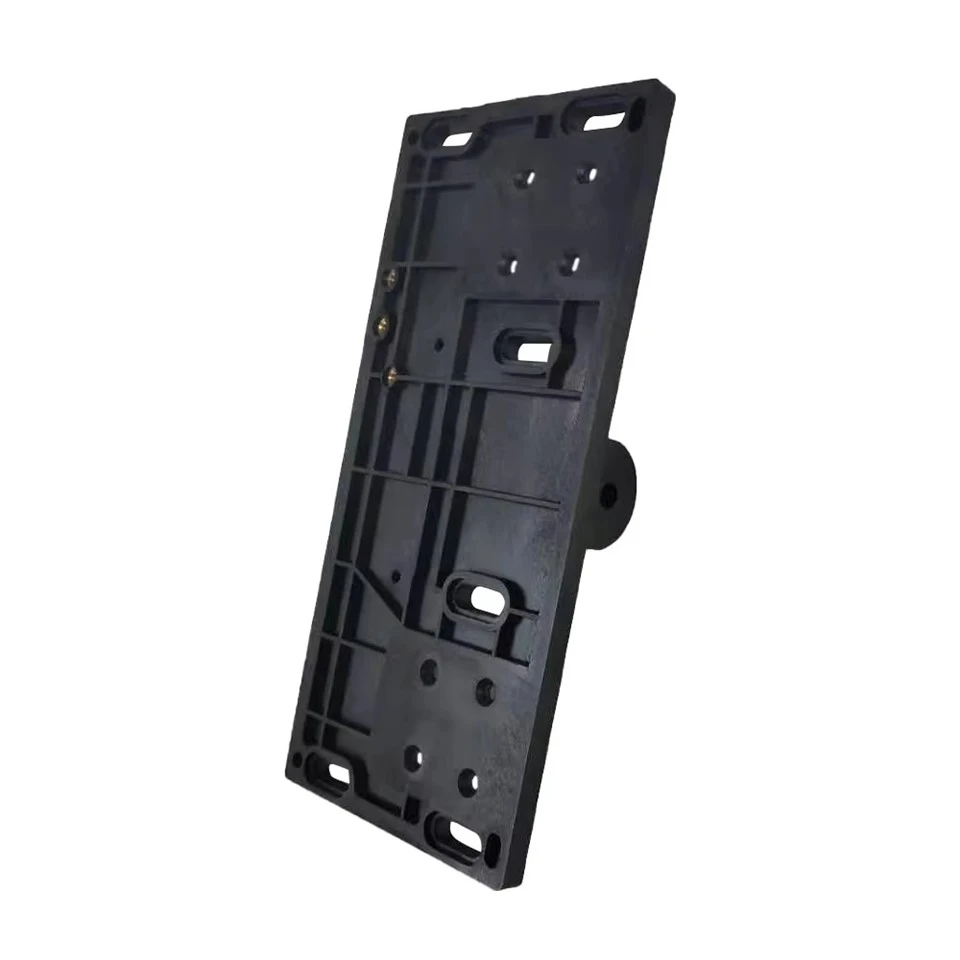

- Reinforced Structural Ribbing: The underside features an intricate grid of structural ribs. This maximizes the stiffness-to-weight ratio, ensuring the part remains rigid even under load, while utilizing the material's natural strength to the fullest extent.

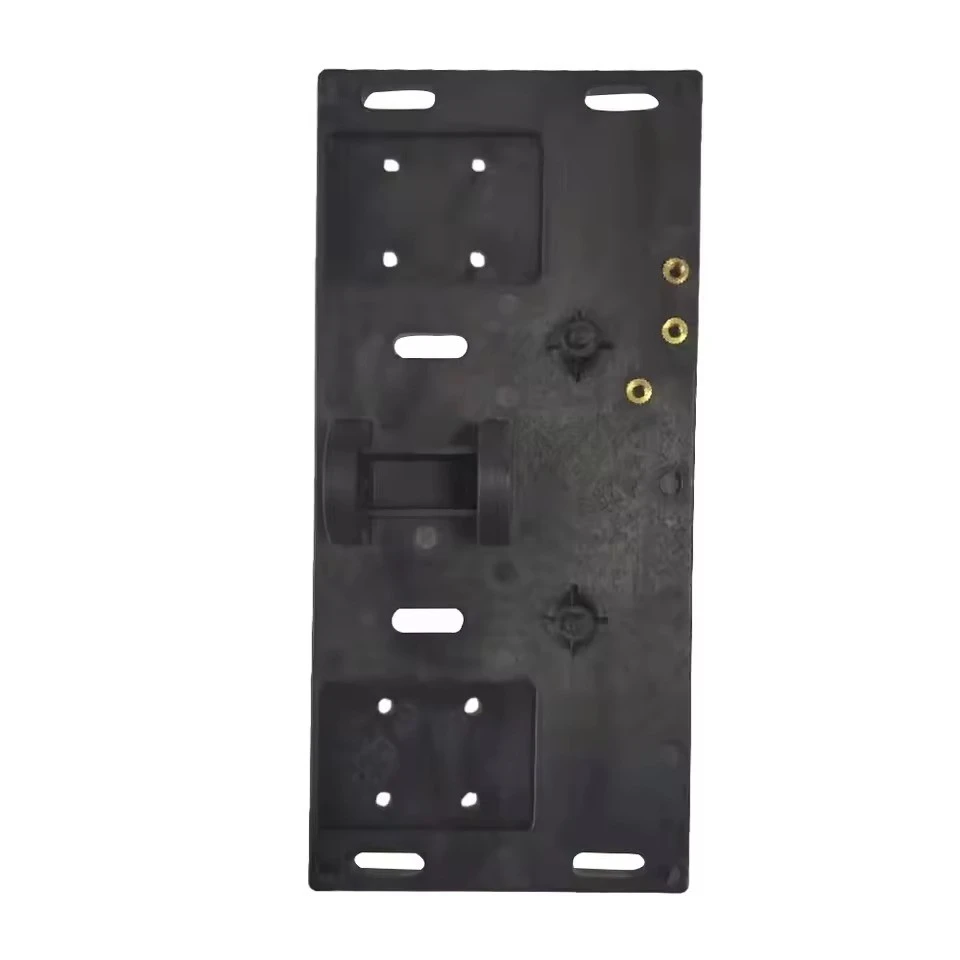

- High-Tolerance Mounting Points: Multiple slotted apertures and mounting holes are molded to precise tolerances to facilitate seamless integration into larger electronic assemblies.
Material & Technical Specifications
|
Engineering Attribute |
Technical Standard |
|
Manufacturing Process |
High-Precision Single-Color Injection Molding |
|
Primary Material |
High-Grade Polyamide 6 (PA6) |
|
Key Features |
Integrated brass insert capability, high-strength ribbing, slotted mounts |
|
Dimensional Tolerance |
Precision engineering ($\pm0.03\text{mm} - \pm0.05\text{mm}$) |
|
Surface Finish |
Industrial matte, high-wear resistance |
Quality Assurance & Performance
- Dimensional Accuracy: Use of CMM verification for all critical mounting interfaces and insert positions.
- Material Integrity Testing: Impact and thermal stress testing to ensure the batch meets industrial durability standards.
- Insert Pull-Out Testing: Verification that the molded-in or post-molded brass inserts meet required torque and pull-out force specifications for secure fastening.
Industrial Applications
Electrical Distribution: Mounting bases for circuit breakers, relays, and power distribution blocks.
Automotive Electronics: Structural housings for sensor modules and wire harness management systems.
Industrial Automation: Durable backplanes for PLC controllers, motor drives, and I/O modules.
Why Choose Benma
Our company is a professional manufacturer of plastic injection molding and optical mold, focus on PC, PMMA, and optical-grade mold fabrication.Our factory operates advanced CNC machining centers and high-speed milling machines.We also use precision polishing technology to achieve high optical clarity.These capabilities help us produce molds and components with strong mechanical performance.Our engineering team designs complex multi-cavity molds,develops tight-tolerance lens parts and custom lighting components.Each design follows clear optical and structural requirements.
We support projects from prototype development to mass production.Our process maintains consistent quality and dimensional accuracy and helps control cost and improve efficiency.
In-house mold design and production – complete control from CAD to final part
Strict optical quality inspection for light uniformity and transmittance
ISO-certified production system for consistent quality assurance
Fast mold development and short lead times
Customized solutions for OEM/ODM lighting manufacturers worldwide
SMETA compliance, and multiple patents
Company Profile
Since 1997, We operated from a 6,000 ㎡ factory in Ningbo, enjoying excellent transport links to nearby cities. We focus on developing lighting products, thermoelectric cooling modules, and custom-made plastic and metal molds. With state-of-the-art workshops, advanced production lines, ISO 9001 & SMETA certifications, and patented technologies, we deliver robust monthly output. Our dedicated team ensures superior quality, efficient processes, and timely global shipment.
Injection Workshop
Hardware Workshop
Assembly Workshop
Laboratory
Injection Molding Workshop Planning
The workshop is organized into distinct functional zones to ensure efficient production and smooth workflow management.
Factory equipment
The factory houses high-tech machinery engineered to optimize precision and improve manufacturing efficiency.
Packing and Shipping
Customized Packing
We provide fully customized packaging options, including your logo, brand labels, and carton artwork.
For export shipments, we use sturdy cartons or steel-frame packing with standard shipping marks to ensure safe transportation.
Shipping
For bulk orders: We cooperate with trusted global logistics partners to deliver reliable and cost-efficient sea or air freight services.
For samples & small orders: We ship through international couriers such as TNT, FedEx, UPS, and DHL.
FAQ
Q1: How do I begin customizing a product?
A1: Provide your 2D/3D drawings and details such as material, hardness, quantity, and color. Our engineers will evaluate and quote within 24 hours.
Q2: Can an NDA be signed before data exchange?
A2: Yes. We ensure confidentiality and can sign your NDA prior to receiving design information.
Q3: Can I add my own logo?
A3: Yes, we support OEM/ODM and logo customization.
Q4: Can you produce from my sample?
A4: Yes, we can create products based on samples or drawings. We also offer free mold fabrication.
Q5: What payment method do you accept?
A5: 30% deposit upfront, balance paid via T/T with B/L copy.
